Make: SMEC
Model: NS2000B

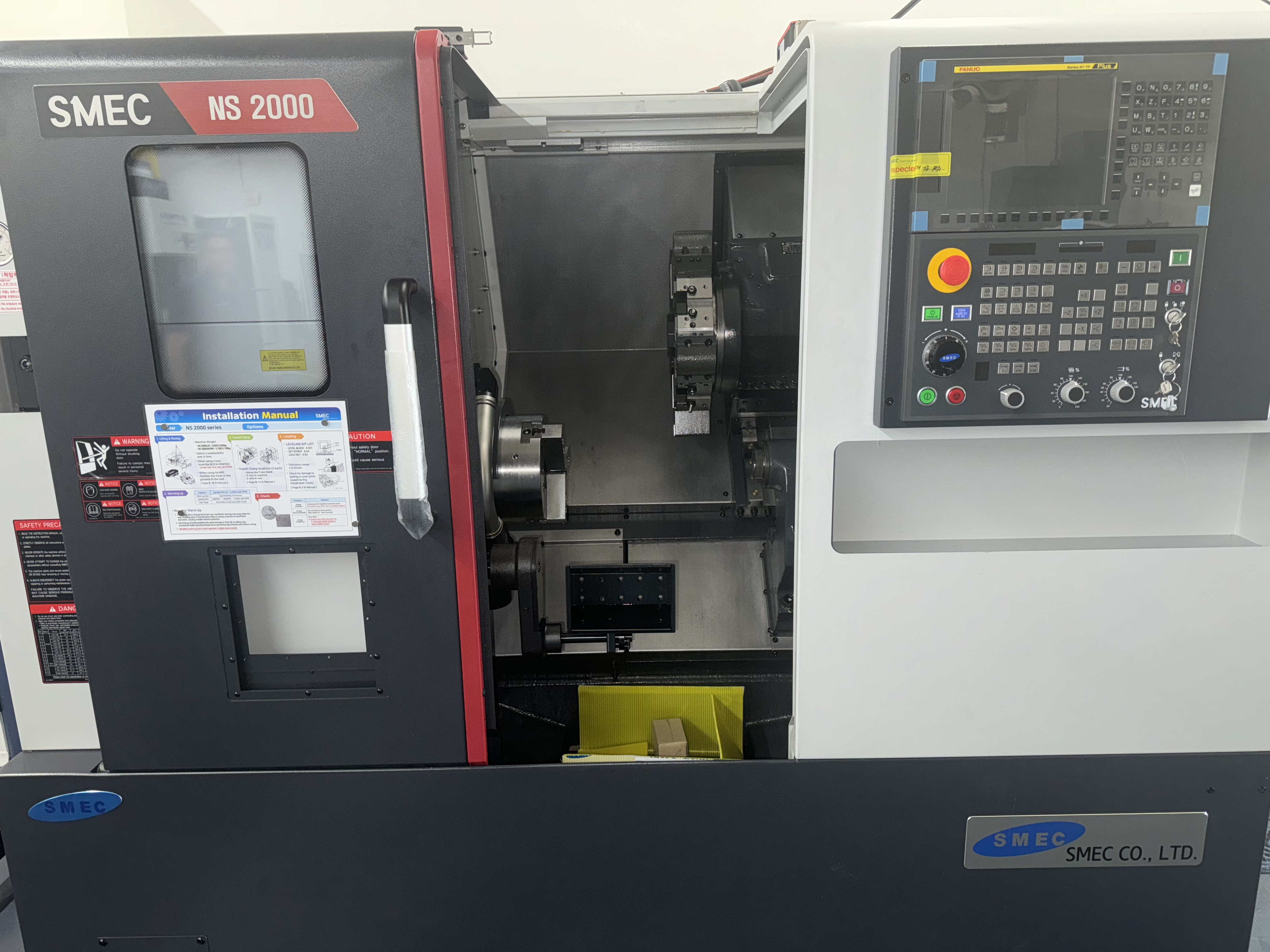

Linear Way Lathe from SMEC

A lighter and faster turning center built to fit the way you work. Much faster traverse speed in a more compact footprint for a great value.



Linear guideways turning centers with 6" or 8" chucks and milling options.



The NS Series minimizes footprint, but delivers features like sub-spindle and y-axis options with roller-type LM guideways, faster traverse speeds, and a 45-degree slant bed with torque tubing for heavy-duty turning.



Built with a compact roller LM guide type that makes it 30-40% more rigid than ball-type LM guides while enhancing productivity and reduced non-cutting time.

  • 8" Chuck

  • 10.28" Max Turning Length

  • 12.21" Max Turning Diameter

  • 4,500 RPM

  • A2-6 Spindle Nose, 25HP Spindle Motor

  • FANUC 0iTF+ Control

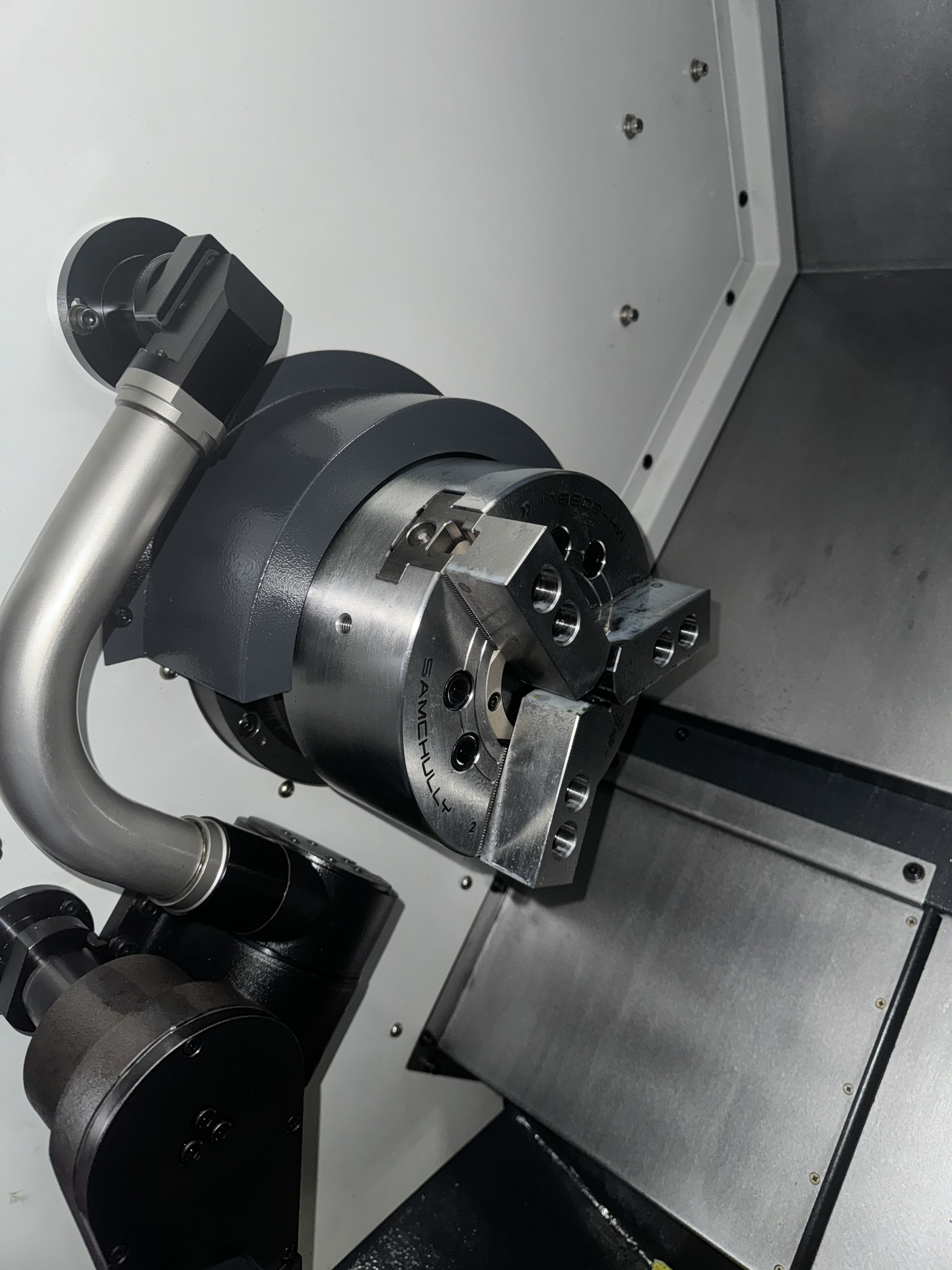

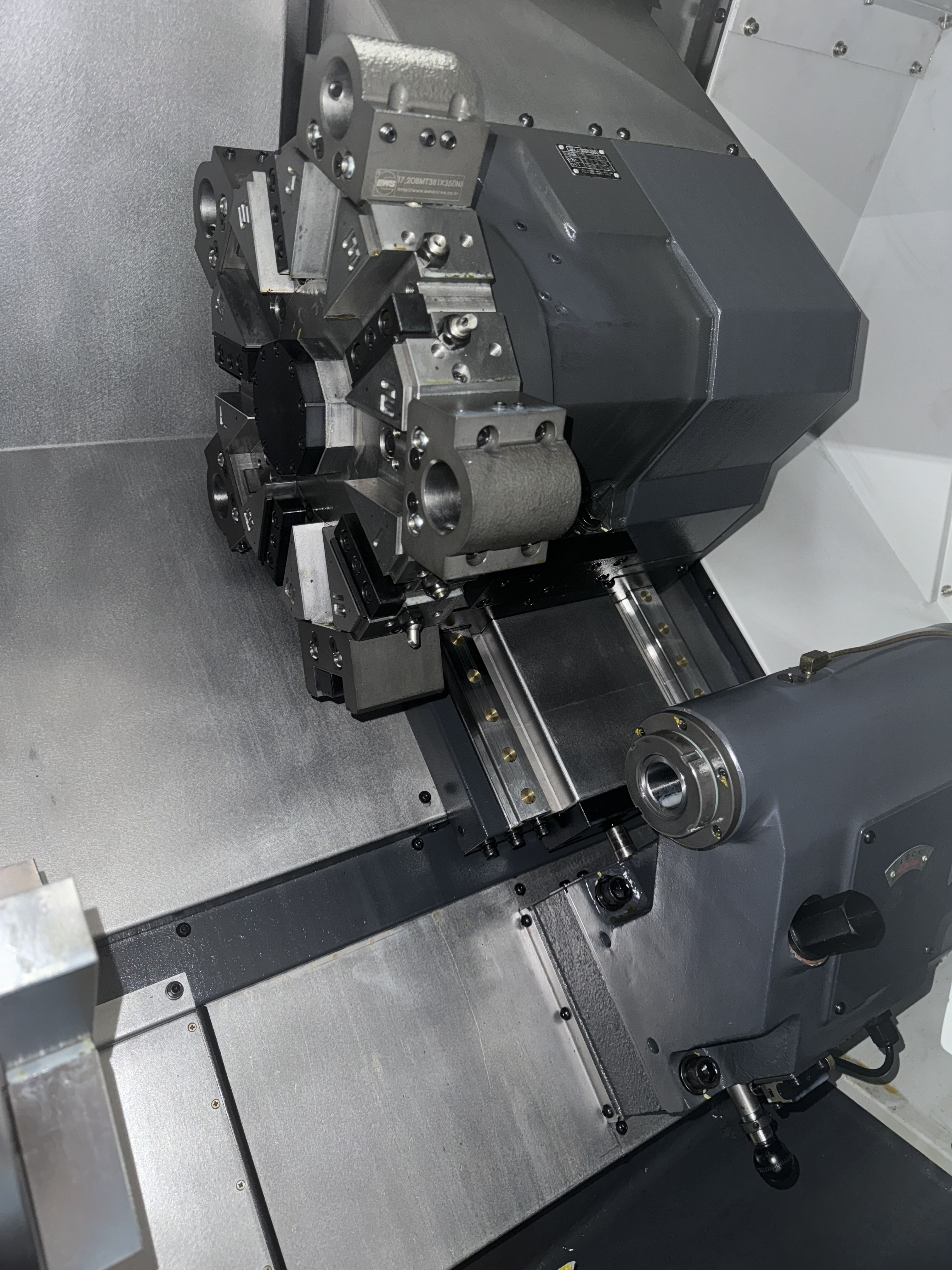

NS2000B turret NS2000B Chuc
Location: Eastern Branch
